JAY PARTS POLARIS SPORTSMAN SCRAMBLER 850 1000 BUSHING KIT FRONT A-ARMS - JP0022

JAY PARTS Bushing & Sleeves Kit A‐Arms front - POLARIS Scrambler & Sportsman 850/1000

The sleeves are made of vacuum-hardened and ground stainless steel; only the best is good enough for our claim!

PE-GL with added oil is used as a self-lubricating, wear-resistant material for the bushings. With an all-around lubrication, we rated an inner spiral groove as optimal. Sealing against dirt and water.

FEATURES
- Vacuum-hardened stainless steel sleeves
- stainless
- bushing PE-GL
- spiral groove inside
- sealed with O-rings

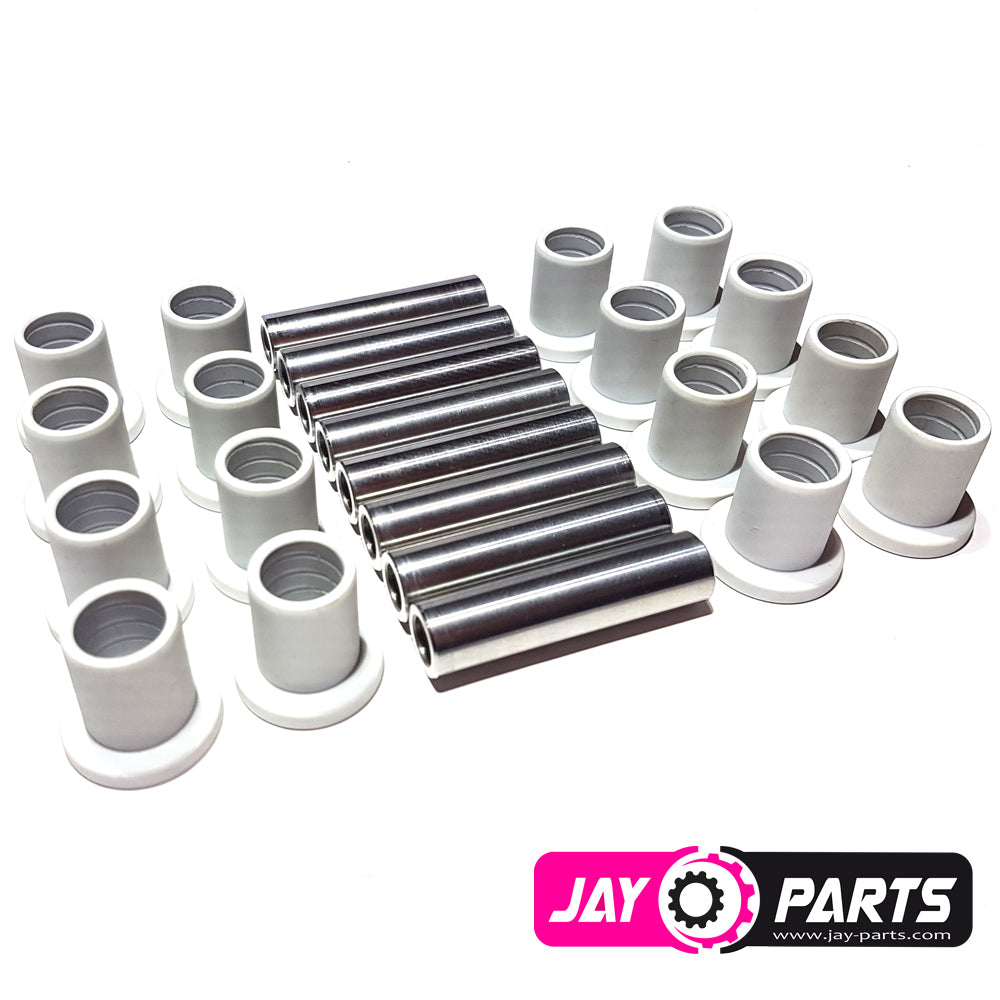

DELIVERY UNIT:
- 8 sleeves
- 16 bushings
The kit includes all parts for the front left and right!

WORKS WITH THE FOLLOWING MODELS:
Polaris Sportsman 850 | 2010-2017
Polaris Sportsman 1000 | 2015–2017
Polaris Sportsman 1000 Highlifter | 2015-2017
Polaris Sportsman Touring 850 | 2011-current
Polaris Sportsman Touring 1000 | 2015-2017

Polaris Scrambler 850 | 2013+
Polaris Scrambler 1000| 2013-2016

ATTENTION ON ASSEMBLY
Don´t hit the bushings with a hammer!
Put enough grease in the bushings before installation.
Please fill in grease on the grease press only until a first resistance occurs.
Grease must not ooze out!
