JAY PARTS BUSHING KIT REAR A-ARMS POLARIS SCRAMBLER SPORTSMAN 850 1000 - JP0023

JAY PARTS Bushing & Sleeves Kit A-Arms rear - Polaris Scrambler & Sportsman 850/1000

The sleeves are made of vacuum hardened and ground stainless steel, only the best is good enough for our claim!

For the bushings, PE-GL with oil additive was preferred as a wear-resistant material, to ensure all-round lubrication, we have an inner spiral groove as optimal. An O-ring provides sealing against dirt and water.

FEATURES
- Made in Europe
- vacuum hardened stainless steel sleeves
- stainless
- bushing PE-GL
- spiral groove inside
- sealed with O-rings

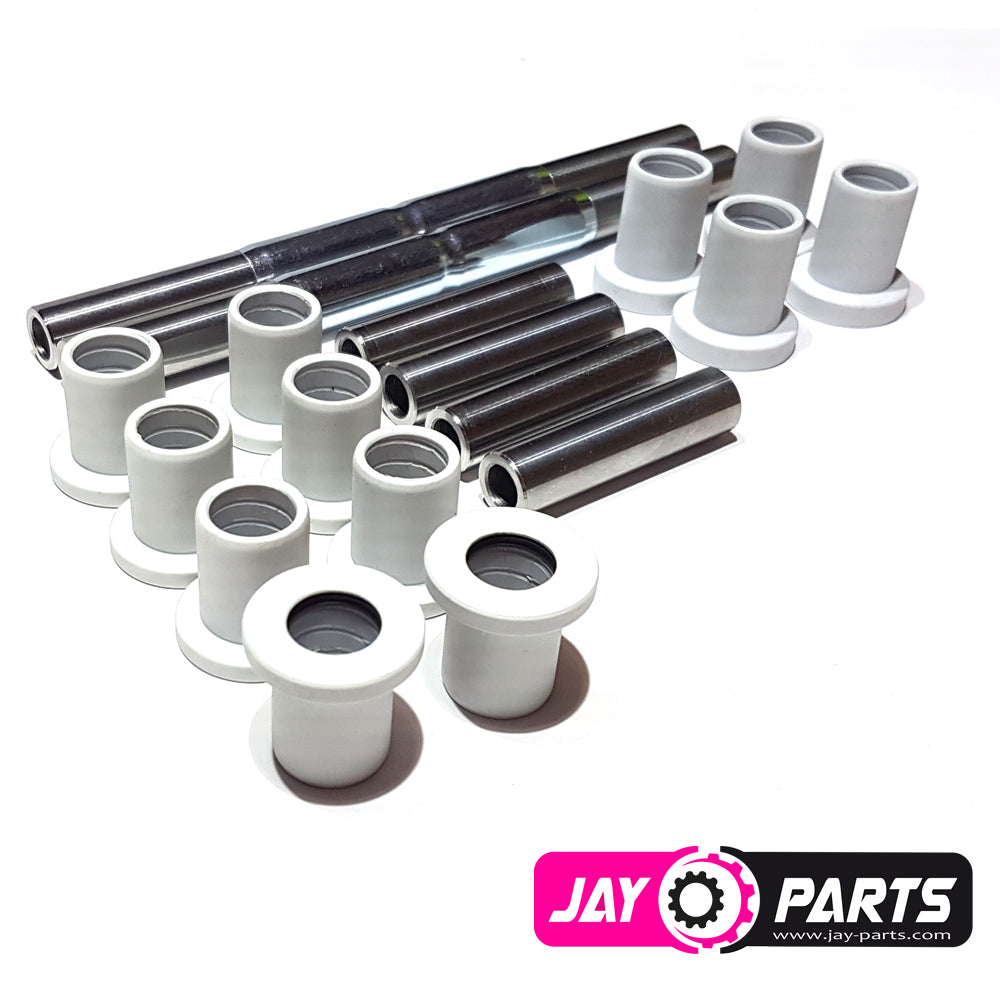

DELIVERY UNIT:
- 4 short sleeves
- 2 long sleeves (3 sections)
- 8 short bushes
- 4 long bushes
The kit includes all parts for the rear KNUCKLE left and right!

Polaris Scrambler 850 | 2013-current
Polaris Scrambler 1000| 2013-current

Polaris Sportsman 850 | 2010-2017
Polaris Sportsman 1000 | 2015–2017
Polaris Sportsman 1000 Highlifter | 2015-2017
Polaris Sportsman Touring 850 | 2011-current
Polaris Sportsman Touring 1000 | 2015-2017

ATTENTION ON ASSEMBLY
Don´t hit the bushings with a hammer!
Put enough grease in the bushings before installation.
Please fill in grease on the grease press only until a first resistance occurs.
Grease must not ooze out!
