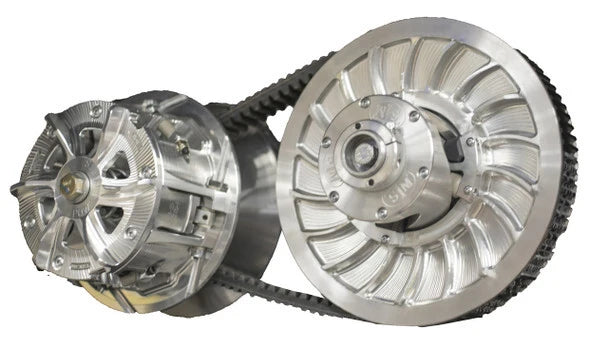

CFMoto Zforce Z10 complete billet primary & secondary clutches.

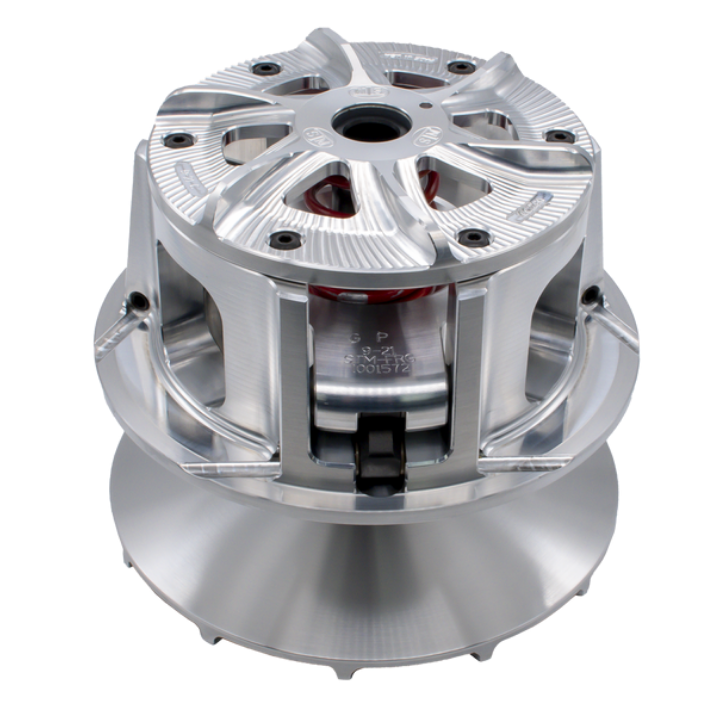

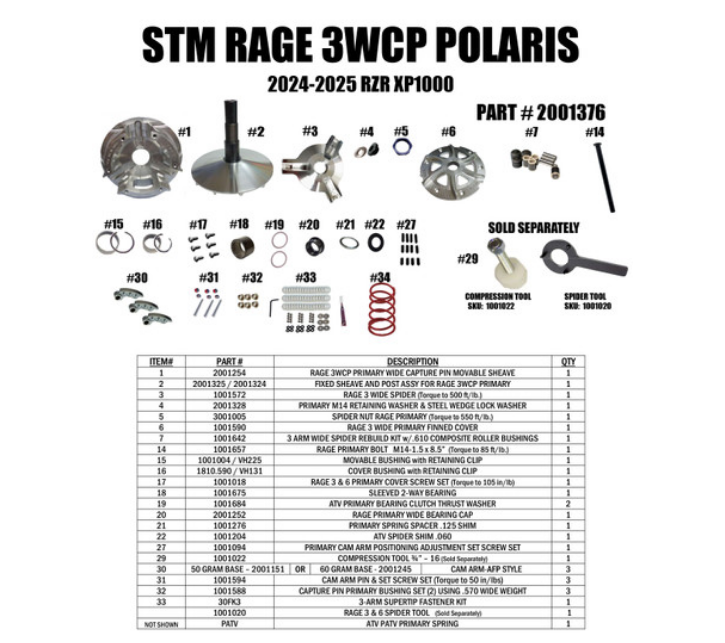

PRIMARY CLUTCH

Completely redesigned STM Rage 3WCP Primary clutch features a wider, thicker, more durable spider with our new composite spider roller bushings for long life. The new design utilizes a captured pin with set screws for maximum durability and ease of use. Along with the new captured pin design we have all new composite cam arm bushings for long life in harsh environments. We have also added a finned fixed sheave for added air flow and cooler operation.

It's all about that belt grip! That is what billet clutches do best. If running a high HP tune, larger tires, and wanting the best performance out of your machine...The STM billet primary and secondary clutch is the only way to go! Trust, we run these on everything we own personally.

The Rage 3WCP primary has two different styles of adjustable cam arms available. The HB Series arms work great for lower power to bigger turbo applications.  The HB series weights feature a "humpback" design and offer good belt grip on the bottom end and awesome mid-to-top end performance.

The Rage 3WCP clutch works well with stock and aftermarket tunes that utilize the stock turbo.

Includes a new retaining bolt insert, and wedge lock washer tu be used with the stock OEM Primary bolt.

This primary can be used with the OEM secondary or the billet STM Tuner secondary clutch

Fits under stock clutch housing without modification

Included with the clutch is a fastener kit to adjust the cam arms

The clutch will be shipped fully assembled with a BASELINE weight setup installed based on the specs of the machine the customer provides. It is the customers responsibility to ensure that the clutch is calibrated properly for their machine per the instructions provided.

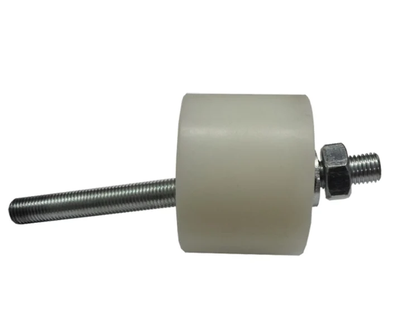

The optional primary compression tool (PN 1001022) is available to change the weights or spring while the clutch is still installed in the machine.

OEM belts work the best in our testing, however any aftermarket replacement belt will work it just may require a different clutch calibration/ setup.

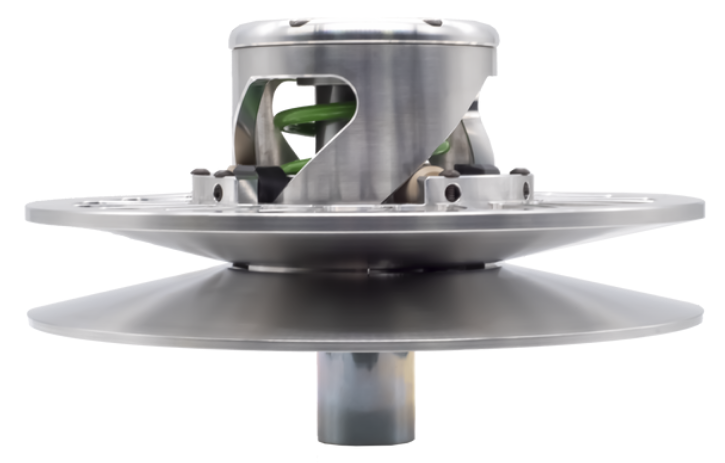

SECONDARY CLUTCH

All billet design, uses the STM Gen 1 ATV-style helixes

Can be used with the stock primary or the STM billet primary

Uses OEM or OEM replacement belts

Includes retaining washer to be used with OEM bolt

Includes an adjuster nut tool to change the belt and set the belt deflection

Available with a compression spring options.

KEEP IN MIND WE CAN ONLY GET YOU CLOSE WITH SET UP. Everyone's riding style is different so it’s up to the customer to do the fine-tuning!

Please make sure your contact information is accurate. We will be calling you to collect information in order to build your clutch!

Questions call 315-530-2512 or 315-623-2061 (10am - 6pm / Mon-Fri & 9am)
