JAY PARTS PINION COVER HEAVY DUTY POLARIS SCRAMBLER SPORTSMAN 850 1000

Please check Model/Year!

The Jay Parts Differential Cover strengthens the front differential several times over against breakage and removes play in the bearing seat. Save yourself a lot of money by exchanging the original cover for the reinforced version from JAY PARTS in time.

OUR RECOMMENDATION
- Replace the cover before it breaks, because 80% of the time the whole Front Differential has to be replaced.
- Check and replace the roller bearing of the pinion, it should not make any running noise.
- Change the differential oil! ATTENTION: Use only the original Demand Drive oil.
- Installation by a professional workshop is recommended

WORKS WITH THE FOLLOWING MODELS:
Polaris Scrambler 850 | 2013-current
Polaris Scrambler 1000 | 2013-current
Polaris Sportsman 850 | 2015-current
Polaris Sportsman 1000 | 2015-current

Polaris Sportsman 850 HL | 2018-2021
Polaris Sportsman 1000 HL | 2018-2021

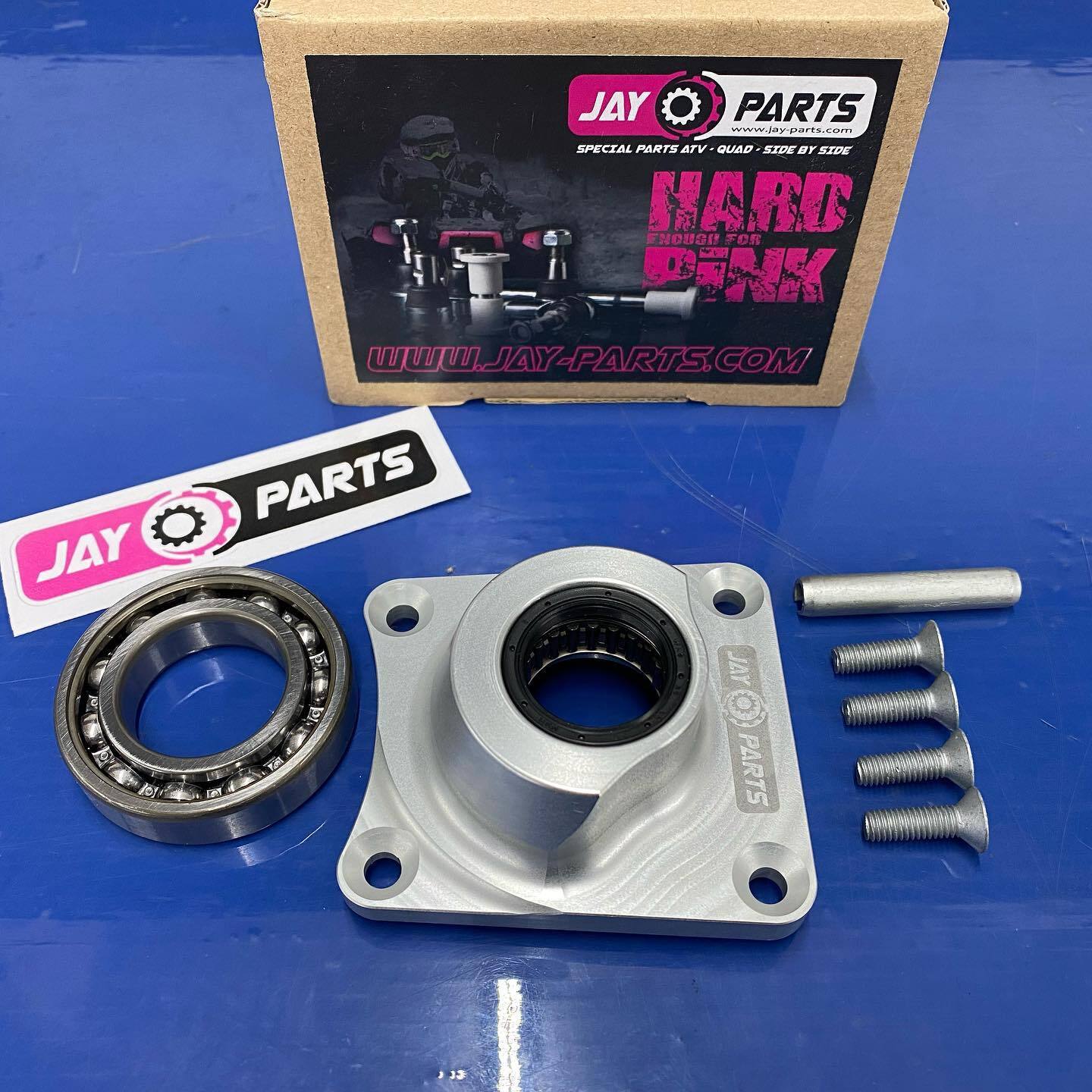

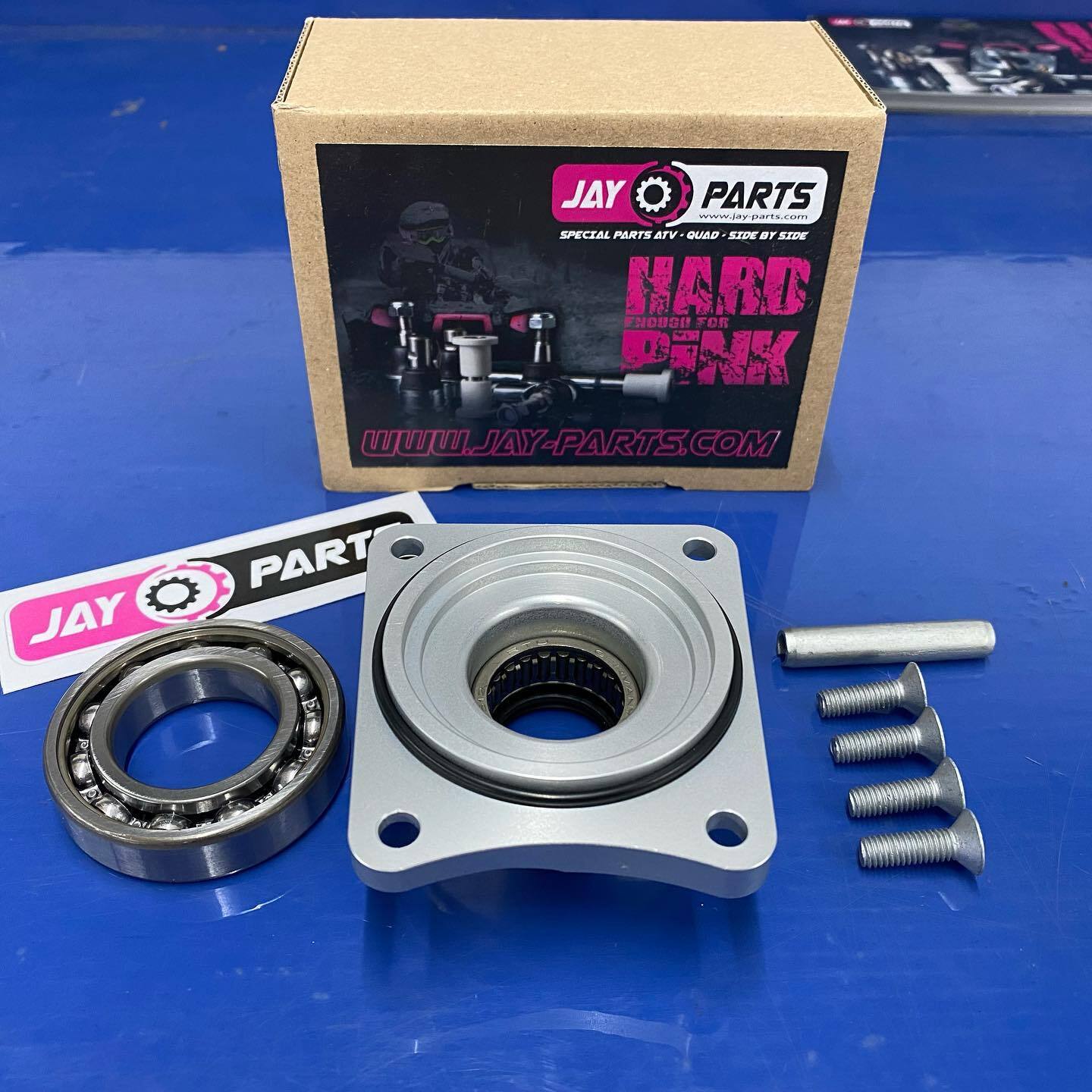

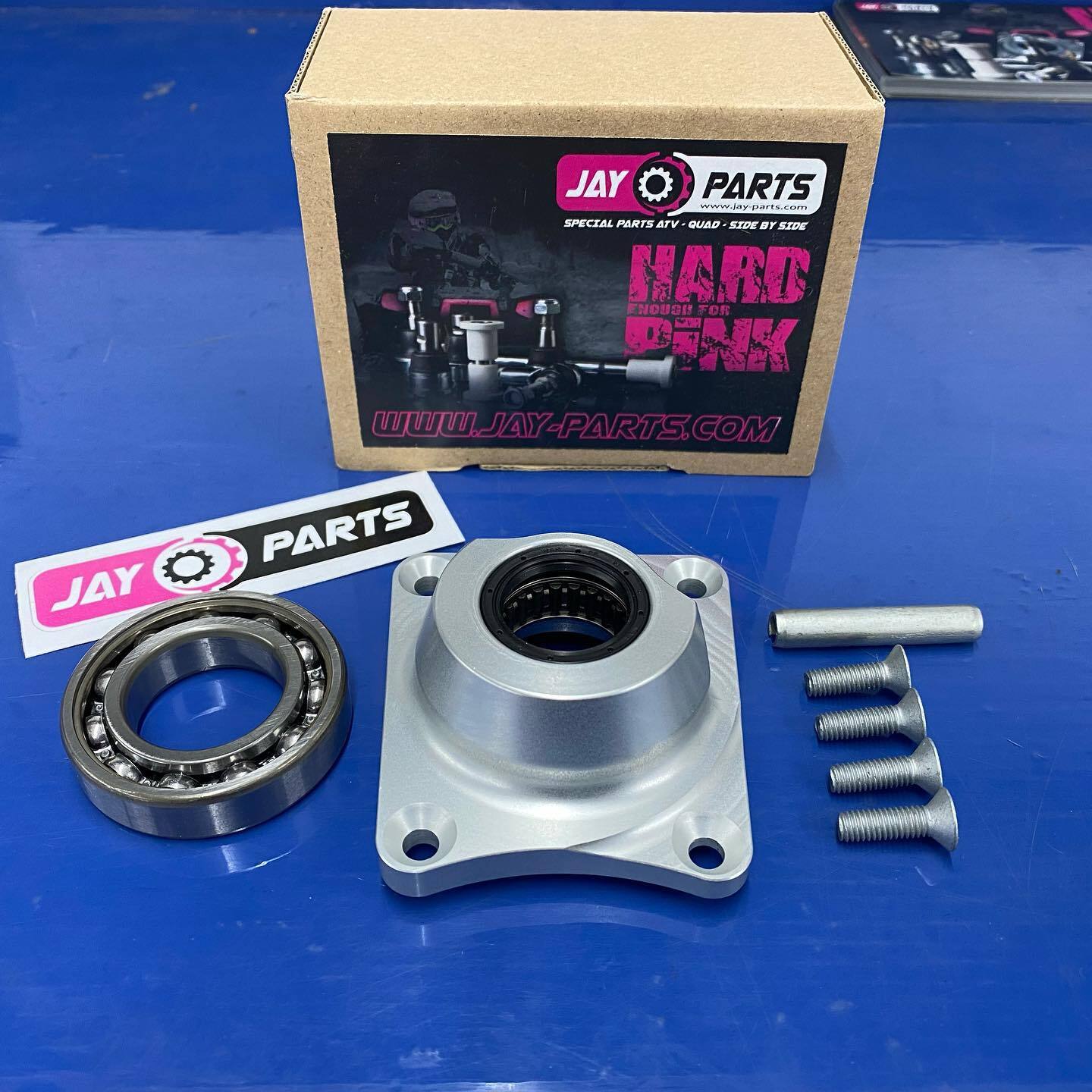

FEATURES & DELIVERIES
- reinforced frame
- tie rod clearance
- extended bearing seat + new pinion bearing
- no play in bearing seat
- INA bearing"Made in Germany"
- Material: 7075 aluminum
- 4 screws 10.9, splint included
- oil-seal ring, O-Ring included

TORQUES

• Cover screws 10‐15 NM
• Oil filling and drain screw 11‐14 NM
